Single Channel 200MHz 12bit ADC board

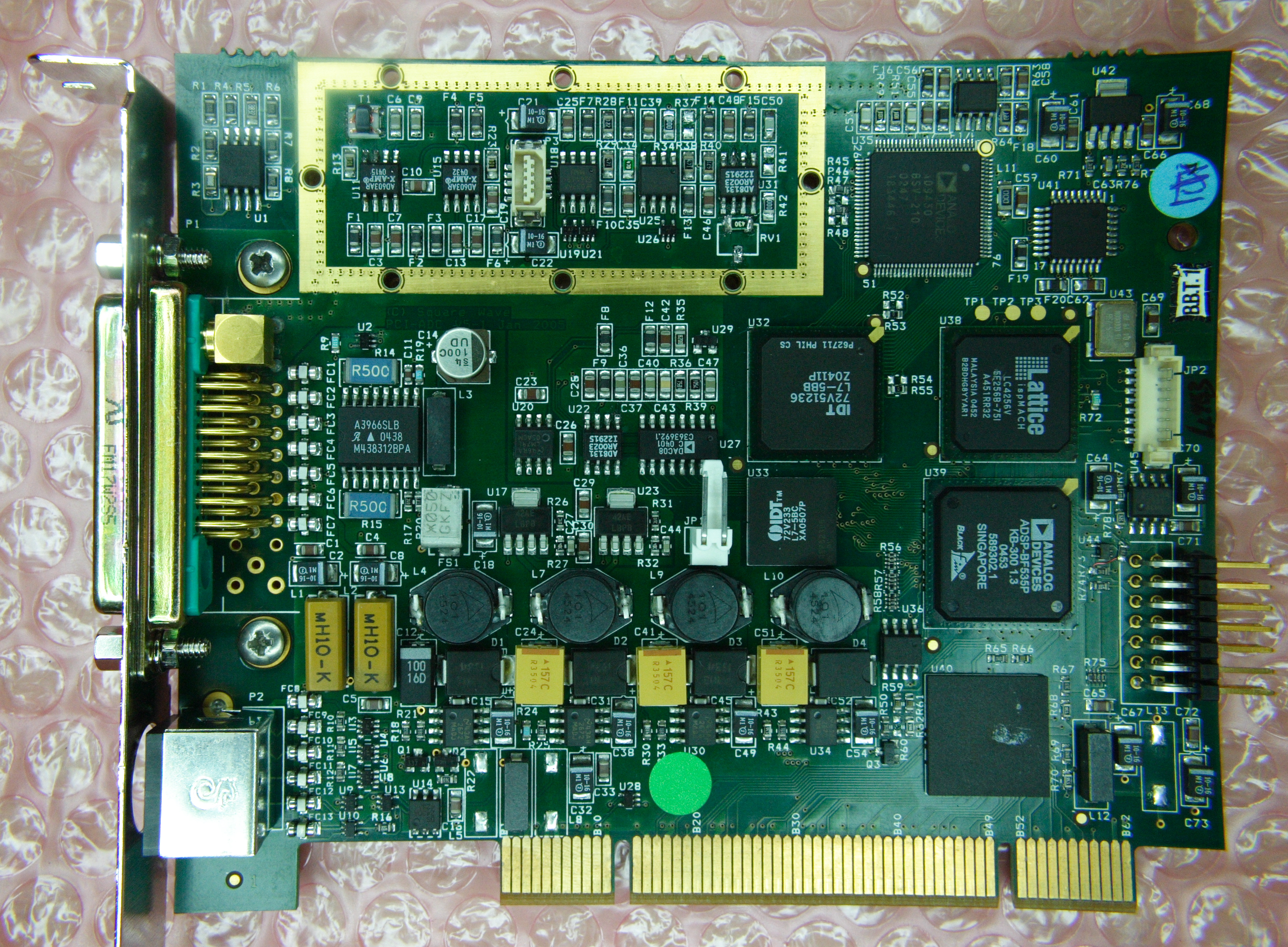

Designed for ultrasound imaging but can be used for a number of other applications. The AD9430 ADC can be clocked at frequencies between 25MHz and 200MHz The input to the ADC has a gain control range of 80dB. The gain control is achieved by an arbitrary wave form generator for time gain compensation. Data from the ADC is stored in records of up to 8192 long. The ADC data is transferred into the PC by an Analog Devices Blackfin processor. This processor can be selected to manipulate the signals in the form of; log compression, averaging, digital gain, sample swapping etc. Also on board is a stepper motor controller for transducer movement. There are also 6 GPIO lines.

If you are interested in this product please email us for further details.
